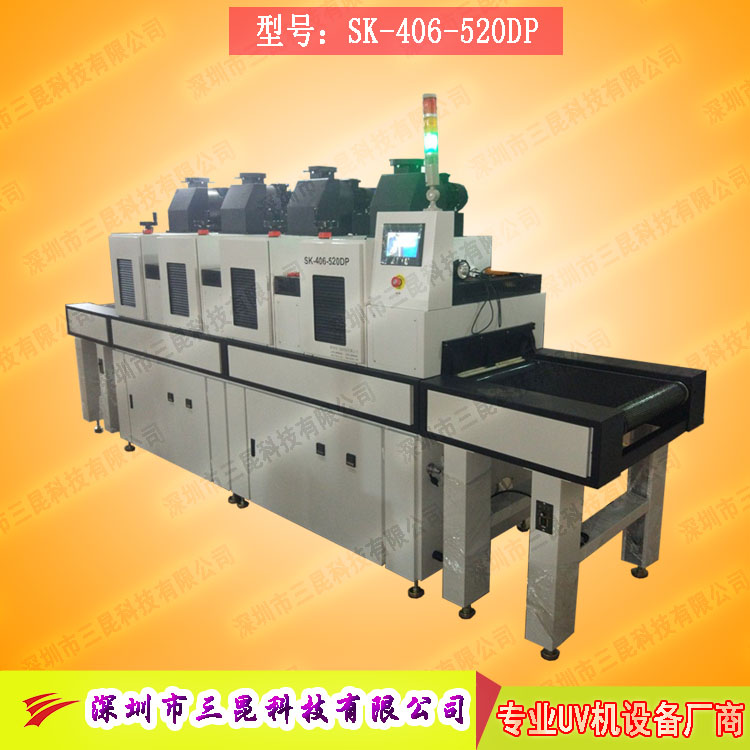

【uv紫外光固化機】四燈節能多功能鹵素?zé)魎v固化機SK-406-520DP

產品訂購

品牌：SunKun(三昆)

型號：SK-406-520DP

訂購：不限數量

價格：面議

⒈訂購熱線：13823369867(李先生) 在線QQ咨詢

1753480168

⒉業務咨詢：13913507139(黃永貴) 在線QQ咨詢

2851085006

⒈市場部：13510246266(黃總經理) 在線QQ咨詢

289604232

產品介紹

注意：所有uv紫外光固化機均可跟據客戶要求非標訂制，歡迎來電咨詢！

技術參數

1、UV燈功率:6.0kw*4支(鹵素?zé)?
2、UV燈總長:620mm、弧長:520mm
3、UV波段主波峰:365nm、385nm
4、UV燈累時器配置
5、人機界面觸摸控制
6、強弱光強調節:20%~100%(無級調節)
7、鋁板燈箱安裝光學反射器和光學濾光鏡片

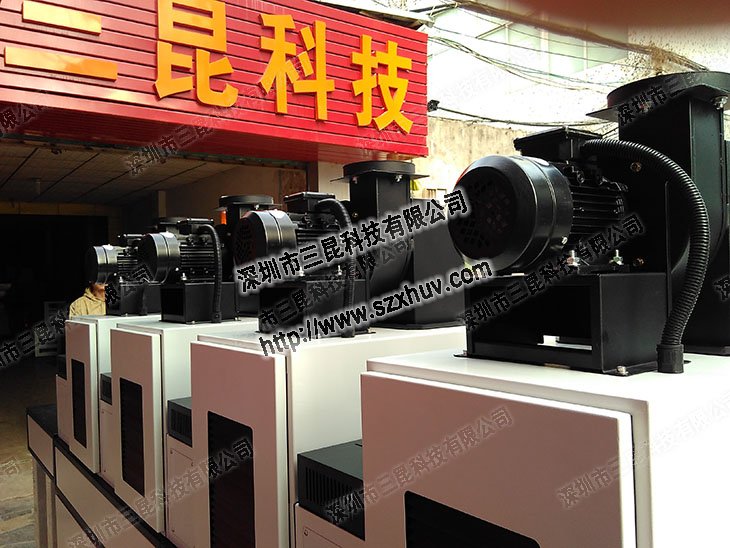

8、采用上、下排風系統

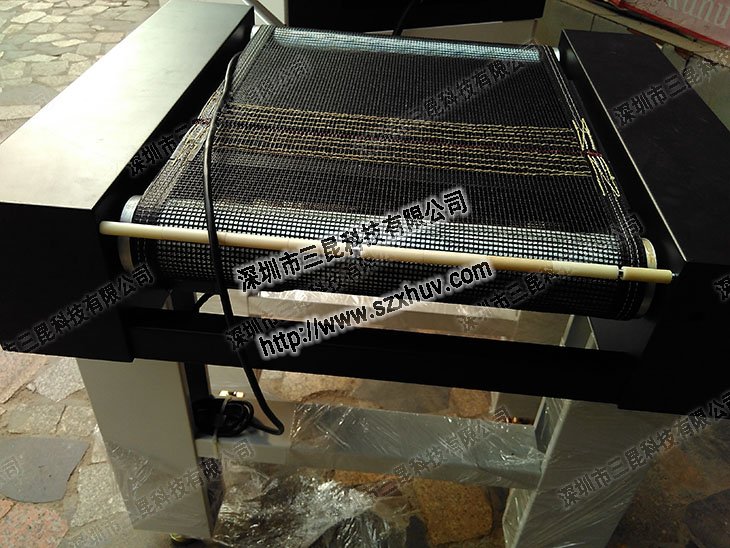

9、輸送材料:特氟龍網帶
10、輸送寬度:520mm
11、輸送速度:0.3~5m/min
12、入口高度:100mm
13、電源:380vac50HZ

Technical Parameters:
1, UV lamp power: 6.0kw * 4 (halogen)
2, the total length of the UV lamp: 620mm, arc length: 520mm
3, UV band main peak: 365nm, 385nm
4, UV light timer configuration
5, man-machine interface touch control
6, strong and weak light intensity adjustment: 20% ~ 100% (stepless adjustment)
7, aluminum plate light box installation optical reflector and optical filter lens
8, using the upper and lower exhaust system
9, conveying materials: Teflon mesh belt
10, conveying width: 520mm
11, conveying speed: 0.3~5m/min
12, the entrance height: 100mm
13, power: 380vac50HZ

功能用途

主要用途：

uv紫外光固化機適用于光電行業 集成電路芯片玻璃板晶片裸片密封電子材料組裝補強用膠粘劑 UV固化膠粘接引線粘接表面涂覆光學膠粘接微電子裝配粘合 IC保護密封等UV光固化，是一款箱式UV固化設備。為大批量生產或試驗室設計，它的多功能性可以適用各種不同的紫外固化應用,固化小元件非常理想。系統包含電源箱、可以移動的光源，在固化操作中,可以當作手提固化燈，固化箱等三部分。因為他的簡單設計，非常的好用和可靠，基本不需要任何的培訓和設置時間，這個系統對那些經常需要移動的固化應用非常理想。手提式紫外面光源，適用于對紫外涂層、膠粘劑和密封材料的固化以及熒光激發。想了解更多相關信息，可以咨詢深圳市三昆科技有限公司，謝謝！

The main purpose:
UV UV curing machine is suitable for optoelectronic industry integrated circuit chip glass plate wafer die sealing electronic material assembly reinforcing adhesive UV curing adhesive bonding wire bonding surface coating optical adhesive bonding microelectronic assembly bonding IC protection sealing UV Light curing is a box UV curing device. Designed for high volume production or laboratory, its versatility can be applied to a wide range of UV curing applications, making it ideal for curing small components. The system includes a power box and a light source that can be moved. In the curing operation, it can be used as a portable curing lamp and a curing box. Because of his simple design, it is very easy to use and reliable, and basically does not require any training and setup time, this system is ideal for curing applications that often need to be moved. Portable UV surface light source for curing UV coatings, adhesives and sealing materials as well as fluorescent excitation. For more information, you can consult Shenzhen Sankun Technology Co., Ltd., thank you!

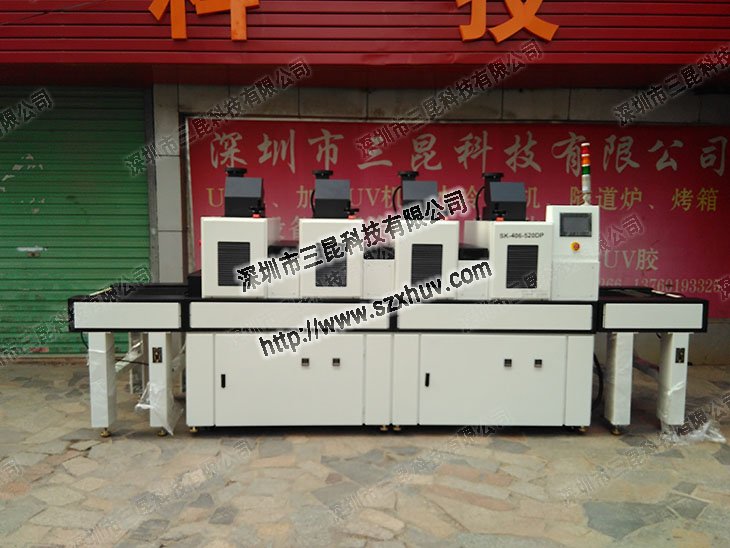

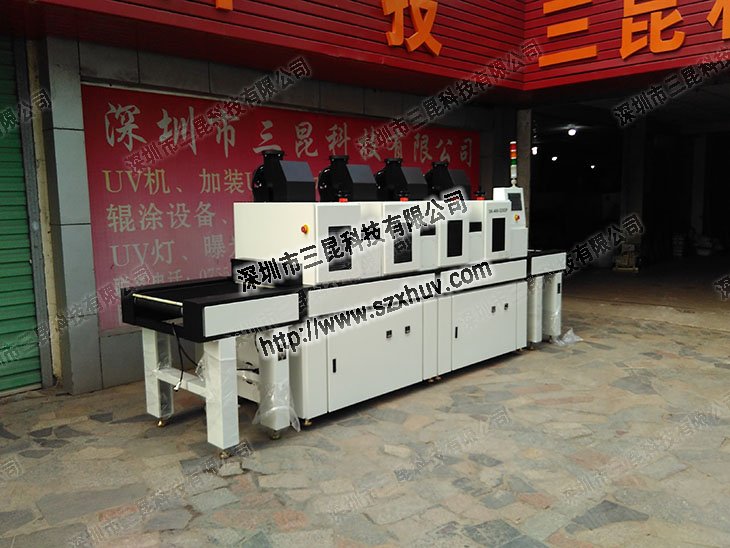

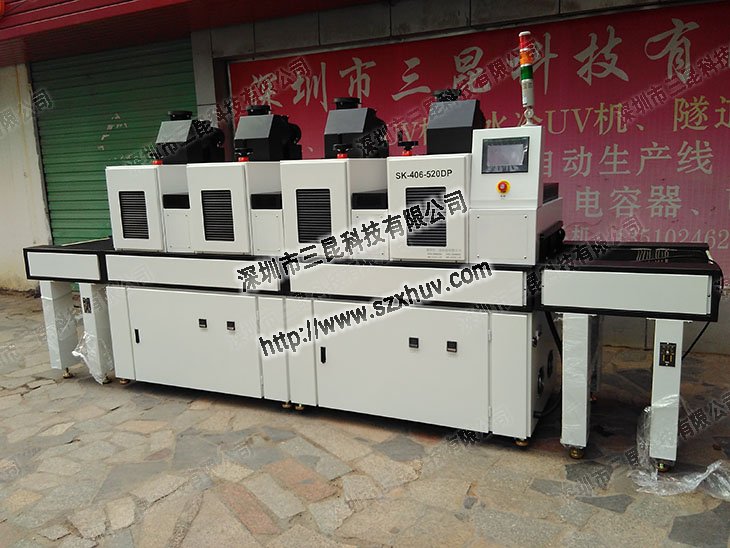

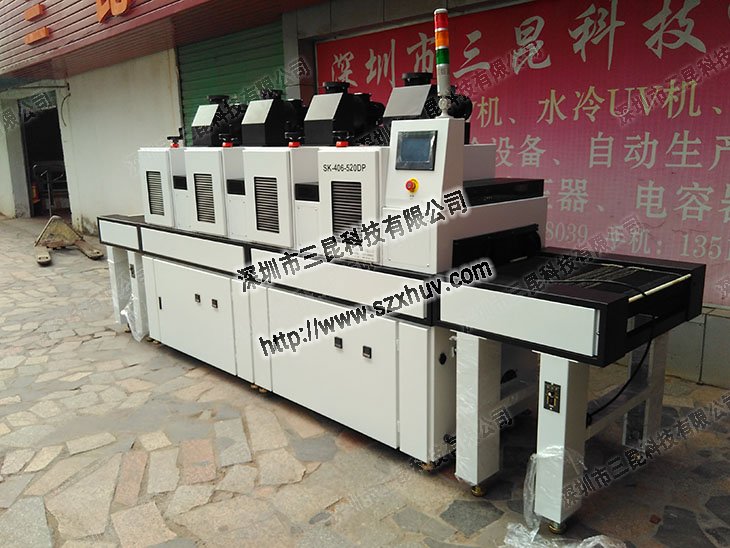

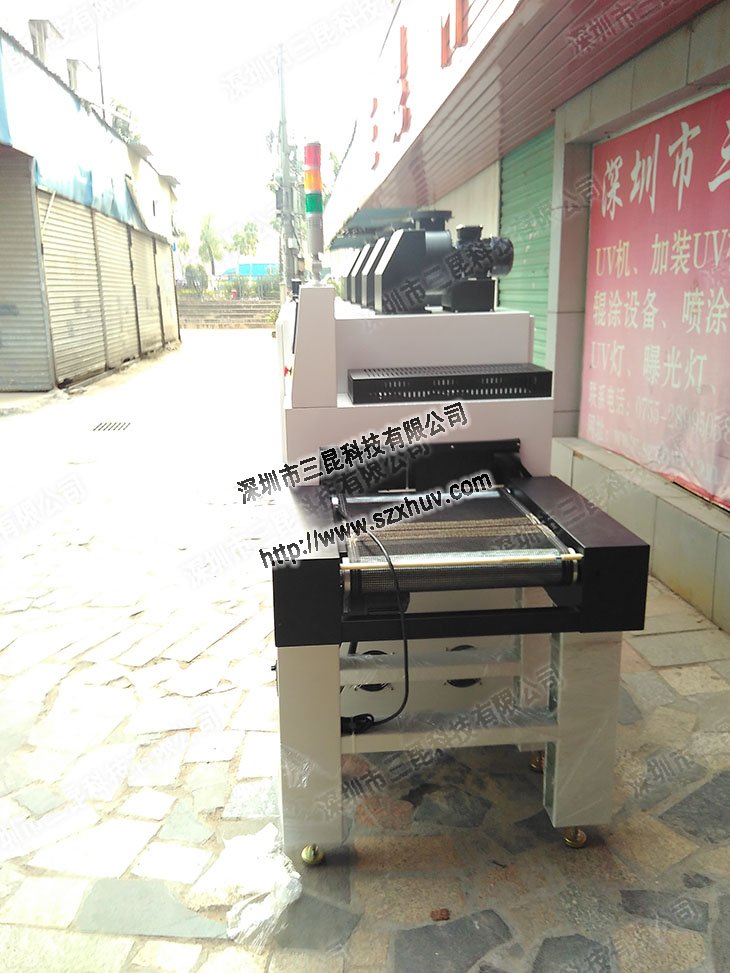

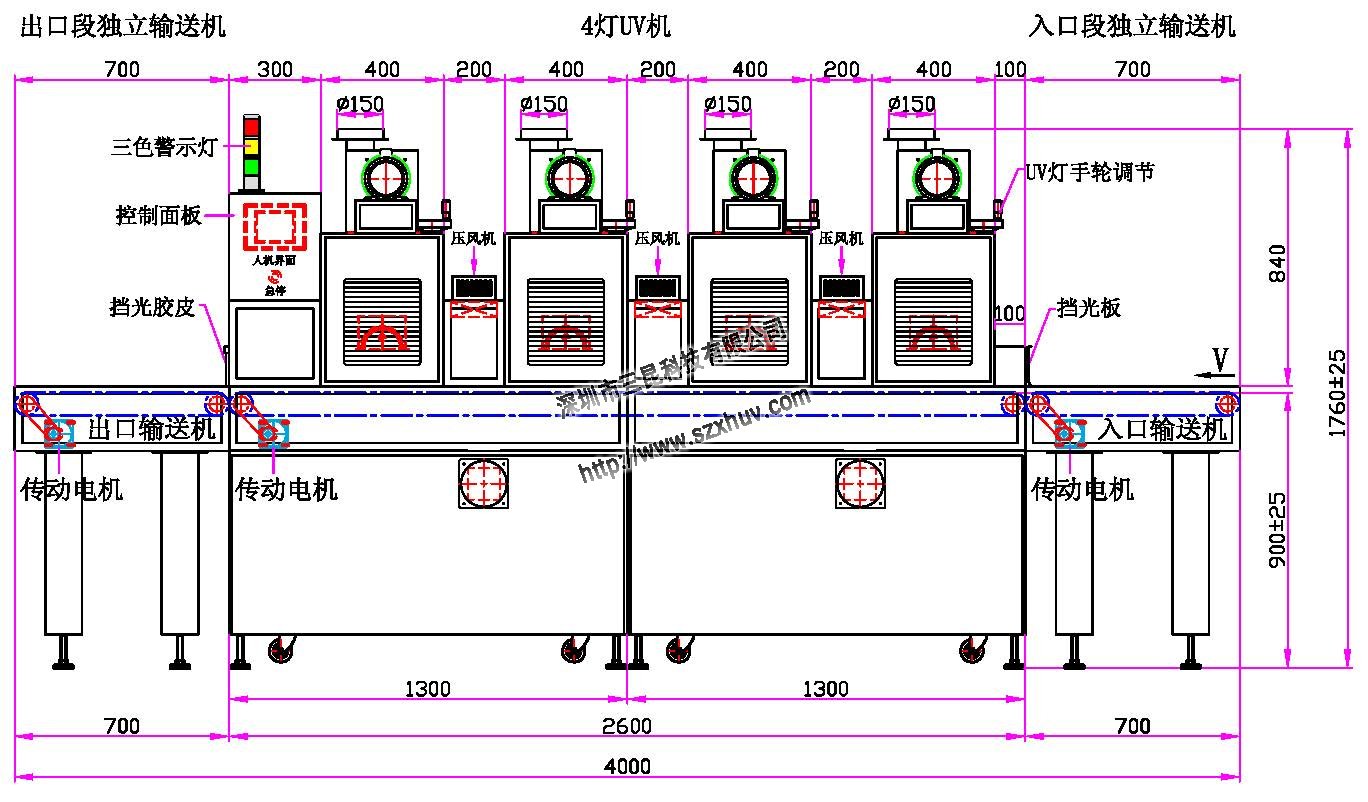

產品平面設計圖
